Overview

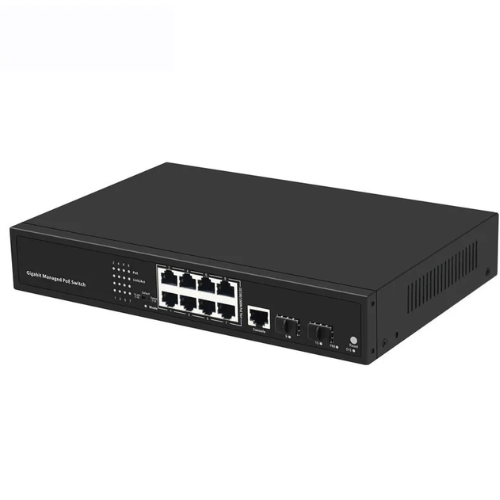

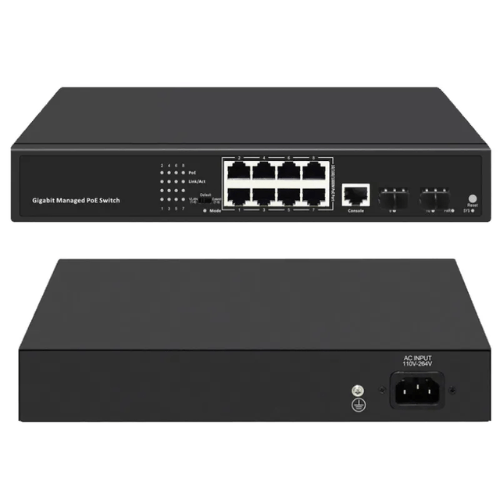

Specimen Track 8 Port Ethernet Switch provides a network point for data transmission with 8 POE ports for quick connections at speeds of 10/100/1000Mbps and a 1.25Gbps fiber interface as an uplink port. It’s designed for simplicity and reliability, automatically identifying Ethernet requirements, and operating at high speeds. It’s a cost-effective solution for installing wireless APs and IP-based surveillance cameras in commercial and home networks.
Features
- 8 x 1000 Mbps POE ports, 2 x 10 / 100 / 1000 M SFP ports
- Supports port auto-flip (Auto MDI / MDIX)
- Uplink port 1.25 Gbps fiber interface
- Adopts store-and-forward architecture
- Remote Web interface for Switch management
Technical Specifications
| Private Mold | NO |
| Ports | 8 |
| Function | POE |
| Interface | 8 x 10 / 100 / 1000M POE ports + 2 Gigabit SFP ports + 1 Console port |
| Bandwidth | 20 Gbps (non-blocking) |
| Packet Buffer Memory | 4 M |
| MAC | 8 K |
| Flash | 16 M |
| MTBF | 100,000 hrs |
| Switching | Store & Forward |
| Power Supply | DC 52 V 2.3 A ,120 W output |

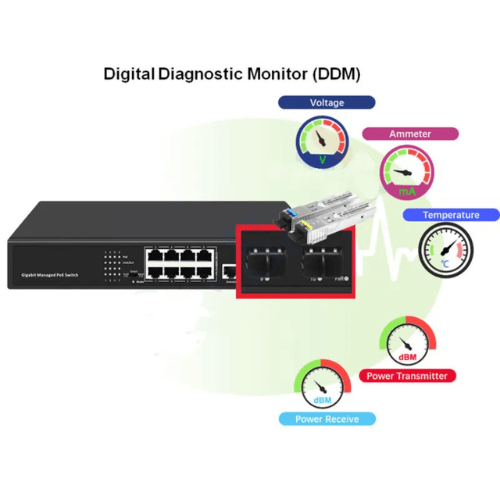

| DDM | Support SFP / SFP+ |
