Overview

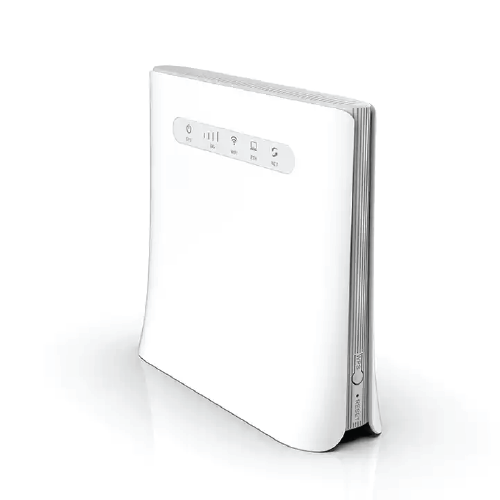

Specimen Track Cost-Effective 4G LTE Wi-Fi Router provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and 4G voice services to end-users. It converts high-speed LTE FDD/TDD signal to Wi-Fi signals on the local area network (LAN) and Wireless LAN (WLAN). Wireless and wired devices which including mobile phones, laptops, tablets, printers, IP cameras and other smart devices.
Features
- 4G LTE
- 1200 Mbps Wi-Fi Rate
- 2600 mAh battery
- Support 64+ devices
- Multi Ports design
- Switched-off Report
Technical Specifications
| Flash | 16 MB SPI Flash |
| RAM | 64 MB DDR2 (MT7628DAN) |
| 2.4 GHz Wi-Fi | MT7628DAN |
| 5 GHz Wi-Fi | MT7613BEN |
| 4G LTE | ZX297520V3E, 3GPP Release 9, CAT4 modem |
| SIM Card | 1 x SIM / USIM Slot, 1.8 V / 3.0 V 2FF USIM |

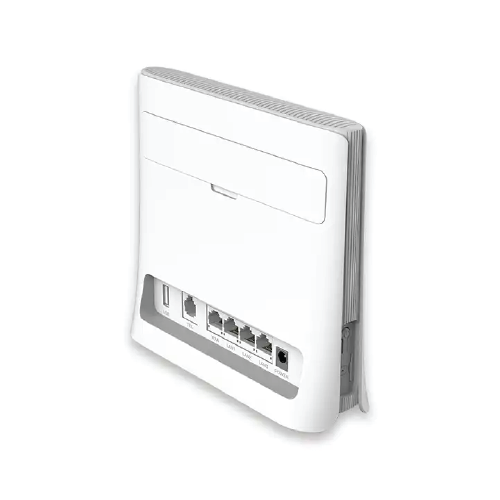

| Ethernet | 4 x RJ45 10 / 100 Mbps Ethernet Port, Adaptive, Auto MDX (1 WAN + 4 LAN) |
| Voice | 1 x RJ11 VoLTE Telephone Port (Optional) |
| USB | 1 x USB 2.0 Host Port (For Debug Purpose Only) |
| Battery | 2600 mAh Li-ion Backup Battery (Optional) |
| Power Supply | 1 x Power Adapter: Power Input 100 V to 240 V AC 50 / 60 Hz, Power Output 12 V / 1 A DC Power; 1 x Standard Power Input Jack, 12 VDC |
| Power Button | Power ON / OFF Switch Button |
| Reset | 1 x Pinhole Reset Button. Long press for 3 seconds to activate factory settings restore |
| WPS | 1 x WPS Button |
| LED Indicators | Power LED indicator, WPS / WLAN LED indicator, LAN LED Indicator, LTE Internet LED indicator, Cellular Signal Strength LED Indicator |
| Operating Temperature | – 4 °F to 122 °F (- 20 °C to 50 °C) |
| Storage Temperature | – 13 °F to 158 °F (- 25 °C to 70 °C) |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Weight | 0.75 lb (342 g) |
| Dimensions | 6.69 in x 2.17 in x 6.06 in (170 mm x 55 mm x 154 mm) |
