Overview
GAOTek industrial tablet are a rugged and reliable vehicle-mounted computer, which is widely used in fleet management, advanced farming system, special industry vehicles, etc. The extremely robust industrial grade hardware ensures perfect usage in various harsh environments. The excellent performance of i.mx8 makes all control simple, Linux open platform Debian 10 provides a flexible environment for development. 3R tablet’s products can be tailored to meet your final needs in term of hardware, software, interface or functions required.
Features
- CANBUS data read
- Gigabit Ethernet
- QT platform
- IP67 water and dust proof
- NXP CPU
- Real time tracking
- MIL-STD-810G
- High brightness
- 8000 mAh battery replaceable
Technical Specifications
| CPU | NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz |
| GPU | 1x shader, Vivante GC320, Vivante GCNanoUltra |
| Operating System | Linux Debian 10 |
| RAM | 2 GB LPDDR4 (Default) or 4 GB (Optional) |
| Storage | 16 GB eMMC (Default) or 64 GB (Optional) |
| Storage Expansion | Micro SD 256 GB |
| LCD | 10.1 in (25.65 cm) HD (1280 x 800), 1000 cd or m² higher brightness, Sunlight readable |
| Touchscreen | Multi touch capacitive touchscreen supporting glove and rain mode |
| BT | BLE5.0 (Optional) |
| WLAN | IEEE 802.11 a or b or g or n or ac; 2.4 GHz or 5 GHz (Optional) |
| Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) (Optional) |
| GNSS | GPS or GLONASS (Optional) |
| Sound | Build-in speaker 2 W, 85 dB Internal microphones |

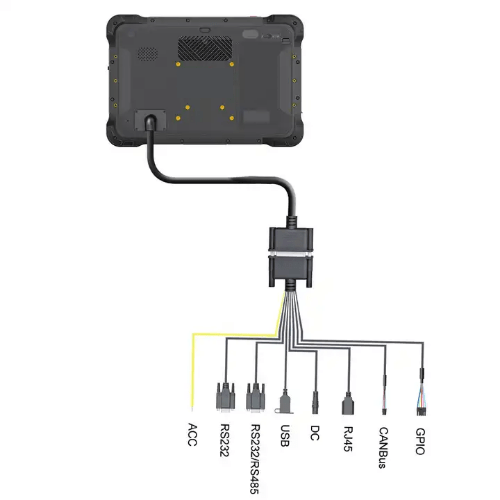

| Interfaces | Type-C, Compliant with USB 2.0, (For data transfer; support OTG) 0.13 in (3.5 mm) headphone jack |
| Sensors | Acceleration sensors, ambient light sensor, Gyroscope, compass |
| Power | DC 9 V to 36 V (ISO 7637-II compliant) Battery: 3.7 V, 8000 mAh Li-ion (Replaceable) Battery operating time: about 4.5 hrs (Typical) Battery charging time: about 4.5 hrs |
| Environment | Gravity drops resistance test:47.24 in (120 cm) Vibration test: MIL-STD-810G Dust resistance test: IP6x Water resistance test: IPx7 Operating temperature: 14 °F to 149 °F (-10°C to 65 °C) Charging temperature: 32 °F to 131 °F (0 °C to 55 °C) Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C) |
| Physical Dimension | 10.9 in x 7.28 in x 1.24 in (277 mm × 185 mm × 31.6 mm) |
| Weight | 2.99 lb (1357 g) |
