Features
- 1 in (25.65 cm) 10 points capacitive touch
- All metal housing, pure screen front panel IP65 standard
- Optional intel onboard Core 6 to 11 generation and Celeron CPU

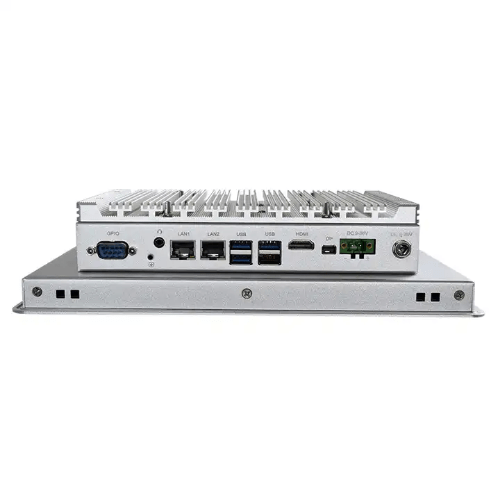

- 2 LAN, 4 USB, 1 AUDIO, 1 MINI DP, 1 HDMI, 4 COM, 8 GPIO
- Wide voltage power supply: DC 9 V to 36 V
- Fan-less design, embedded and VESA wall-mounted
Technical Specifications
| Size | 10.1 in (25.65 cm) industrial screen | |
| Resolution | 1280 (H) x 800 (V) | |
| Brightness | 350 cd or m2 | |
| Contrast Ratio | 900:1 | |
| Viewing Angle | 85 or 85 or 85 or 85(L or R or U or D) | |
| Backlight Life | ≥30000 hrs | |
| Touch Type | USB interface, full-screen 10-point capacitive touch | |
| Touch Mode | Finger or capacitance pen. | |
| Transmittance | ≥85% | |
| Hardness | Mohs hardness 6 H | |
| CPU | Optional intel onboard Core 6 to 11 generations and Celeron CPU TDP 15 W. | |
| Memory | Maximum support is 48 G (selected according to CPU) | |
| Hard Disk | SSD is optional above 0.07 lb (32g), and 2.5 in (6.35 cm) SATA hard disk can be added. | |
| Wi-Fi | Optional 2.4 G & 5 G dual frequency. | |
| 4G Or 5G | Optional Mobile, Unicom and Telecom | |
| Speaker | 2 x 8 Ω 2 W | |
| IO Interface | 1 x HDMI up to 4K 1 x MINI DP up to 4K 2 x LAN.4 x COM ports (optional COM3 for 485). 4 x USB; 1 x DB9 (8-way GPIO); 1 x DC; 1 x Phoenix terminal power supply; 1 x ADUIO (LINE OUT+ MIC IN). 1 x M12 metal power switch with light; | |
| Working Temperature | 0 °F to 122 °F (0 ℃ to 50 ℃) | |
| Storage Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) | |
| Operating Humidity | 95% at 104 °F (40 ℃) No condensation | |
| Vibration | 5 Hz to 19 Hz or 0.03 in (1.0 mm) amplitude, 19 Hz to 200 Hz or 0.002 lb (1.0 g) acceleration | |
| Waterproof | Front panel IP65 | |
| Adapter Power Supply | DC 9 V to 36 V power supply | |
| Maximum Power Consumption | Less than 50 W | |
| Hole Size | 10.37 in x 6.91 in (263.6 mm x 175.6 mm) | |
| Color | Silver color | |
| Case Material | Full metal case | |
| Installation | Fan-less design, recessed and VESA wall mounting | |
| Operating System | Windows 7 or 10 or 11 or Linux, etc., depending on the appropriate motherboard. | |
| Dimension | 10.86 in x 7.4 in x 2.5 in (276 mm x 188 mm x 63.6 mm) | |
| Weight | Approx. 5.51 lb (2.5 kg) |
