Overview

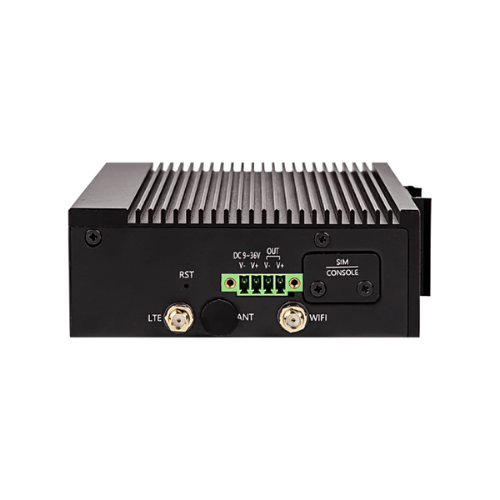

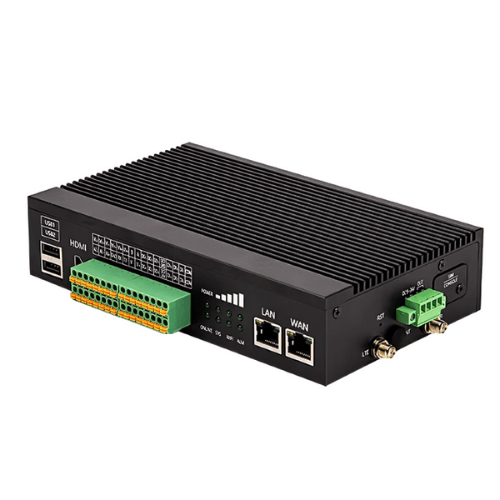

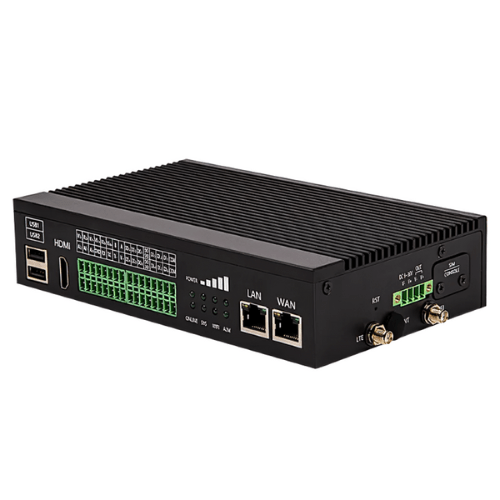

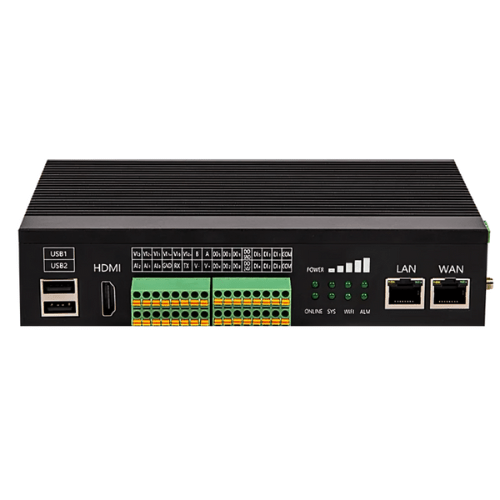

Specimen Track lora wan industrial gateway with sim card are powerful edge computing capabilities, equipped with RS 232, RS 485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high performance Iot deployments. They reduce the data flow between field sites and data center. With 4G, LTE and NB Iot cellular network, Dual band 2.4 GHz, 5 GHz and Wi Fi, dual Gigabit Ethernet, and Elastic Linux based OS, it’s easy to deploy and interoperate with Iot platforms like Microsoft Azure, AWS, Things Board.
Technical Specifications
| CPU | RPI CM 4, Quad core A 72 (ARM V 8) and 1.5 GHz |
| Memory | 1 GB, 2 GB, 4 GB and 8 GB options LPDDR 4 |
| Flash | 8 GB, 16 GB and 32 GB options EMMC |
| Ethernet | 2 x Gigabit Ethernet, (1 WAN, 1 LAN or 2 LAN Configurable) |
| Wi Fi | Dual Band 2.4 GHz, 5 GHz + Bluetooth 5.0 |
| GPS | Cellular Module built in supported (Optional) |
| Serial Ports | Isolated RS 232 x 1, RS 485 x 1 |
| USB | USB 2.0 x 2 for peripherals |
| Power Supply | 9 V to 36 V DC, 1 A, recommended 24 V, 1.5 A |
| Enclosure | Full Aluminium, IP 30, DIN rail |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C), (industrial grade) |
| Dimensions | 7.36 in x 4.40 in x 1.65 in (187 mm x 112 mm x 42 mm) |
| Weight | 1.72 lb (780 g) |
