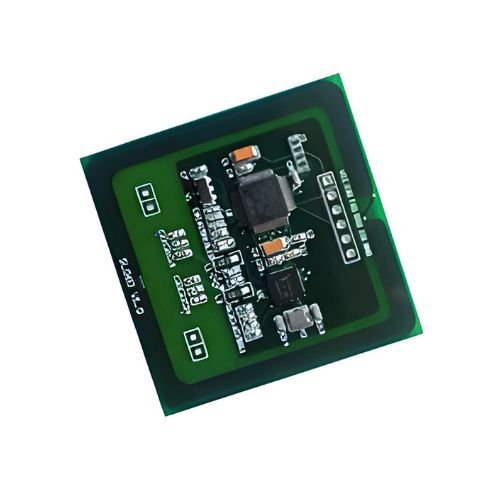

Specimen Track NFC Reader or Writer Embedded Module

Built-in antenna UART NFC solution, 13.56 MHz, ISO 14443 A or ISO 18092 or NFCIP – 1 protocols, 2.5 V to 3.6 V power, 1.97 in operating distance.

Technical Specifications

Antenna	Built-in
Interface	UART
Baud Rate	9600 bits per second to 115200 bits per second
Frequency	13.56 MHz
Current	< 50 mA
Power Supply	2.5 V to 3.6 V
Operating Distance	1.97 in (0.16 ft)
Protocol	ISO 14443 A, ISO 18092, NFCIP – 1
Operating Temperature	-40 °F to 185 °F (-40 ℃ to 85 ℃)
Storage Temperature	-13 °F to 158 °F (-25 ℃ to 70 ℃)
Dimension	1.81 in x 1.81 in x 0.12 in (46 mm x 46 mm x 3 mm)
Weight	0.03 oz (1 g)
