Overview

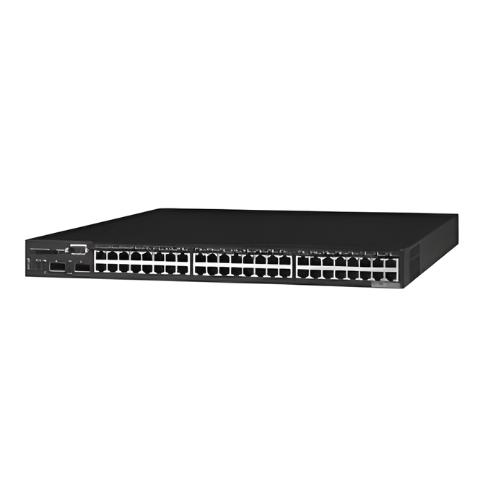

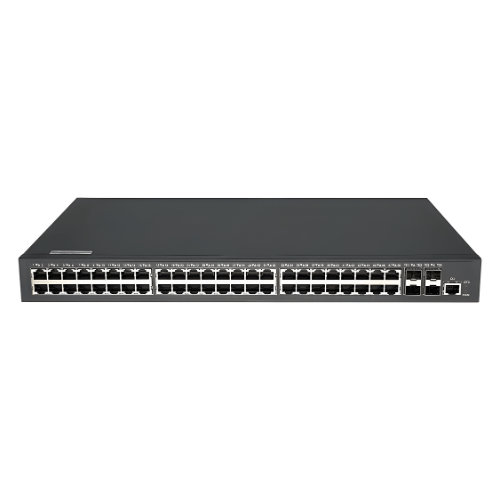

Specimen Track port network ethernet switch with 100 or 1000M port network PoE Ethernet switch is a next-generation aggregation 10GE switch, 162 Mpps forwarding rate and 216 Gbps backplane.
Technical Specifications
| Conventional | Interface | 48 GE TX ports, 4 10GE SFP+ ports，1 Console port |
| Console | 1 RJ45 port | |
| Backplane | 216 Gbps | |
| Forwarding rate | 162 Mpps | |
| Model | 1U | |
| Installation | 19 inch rack-mounted installation | |
| LED indicator | Operation indicator light, interface indicator light, power indicator light | |
| Power | no-load | <25 W |
| full-load | < 48 W | |
| Power supply AC | AC: 100 to 240 V | |
| Power supply AC | DC: 36 to 72 V | |
| Total output BTU (1000BTU/H=293W) | 163.82 | |
| Layer Switching Characteristics | VLAN | 4K Active VLAN or QinQ & Selective QinQ or GVRP, Private VLAN / Voice VLAN |
| Reliability | Static or LACP link aggregation or Interface backup or EAPS and ERPS or ISSU uninterrupted system upgrade or JTVSS, ups to 16-units per stack or VRR or UDLD | |
| MAC address table | 16 K | |
| IP | Static route, RIP, OSPF IPv4 or v6 dual stack | |
| Management | Console, Telnet, SSH v1 or 2, HTTP, HTTPS, SNMP v1 or v2 or v3, RMO or TFTP, FTP, SFTP · NTP · ZTP (Zero Touch Provisioning) or SPAN, RSPAN | |
| Jumbo frame | 9 K | |
| Watchdog function | support | |
| Port trunking | support | |
|
Security | Forwarding mode | Store-forward |
| Flash (MB) | 16 | |
| DRAM (MB) | 512 | |
| MAC | 16 K | |
| Buffer size(Mb) | 1.5 | |
| Environmental Conditions | Working temperature | 32 F to 122 F (0℃ -50℃) |
| Storage/Transportation Temperature | 68 F to 158 F (20℃ to 70℃) | |
| Relative humidity | 5% to 95% | |
| Fan number | 2 | |
| MTBF(H) | > 200,000 | |
| Mechanical Structure | Dimensions Jumbo frame Weight about | 17.32 in X 11. 02 X 1.73 in (440 x 280 x 44mm) 9 K 12.13 lb (5.5 kg) |
