Overview
GAOTek Rugged Linux Tablets are rugged and reliable vehicle-mounted computers, which are widely used in fleet management, advanced farming system, special industry vehicles, etc. The extremely robust industrial grade hardware ensures perfect usage in various harsh environments. The excellent performance of them makes all control simple, Linux open platform Debian 10 provides a flexible environment for development.3R tablet’s products can be tailored to meet your final needs in term of hardware, software, interface or functions required.
Features
- CANBUS data read
- Gigabit Ethernet
- QT platform
- IP 67 water and dust proof
- NXP CPU
- Real-time tracking
- High brightness
Technical Specifications
| CPU | NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6 GHz |
| GPU | 1x shader, Vivante GC320, Vivante GCNanoUltra |
| Operating System | Linux Debian 10 |
| RAM | 2 GB LPDDR4 (Default) or 4 GB (Optional) |
| Storage | 16 GB eMMC (Default) or 64 GB (Optional) |
| Storage Expansion | Micro SD 256 GB |
| LCD | 10.1 in (25.65 cm) HD (1280 pixels x 800 pixels), 1000 cd/m² higher brightness, Sunlight readable |
| Touchscreen | Multi touch capacitive touchscreen supporting glove and rain mode |
| BT | BLE5.0 (Optional) |
| WLAN | IEEE 802.11 a/b/g/n/ac; 2.4GHz / 5GHz (Optional) |
| Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) (Optional) |
| GNSS | GPS / GLONASS (Optional) |
| Sound | Build-in speaker 2 W, 85 dB Internal microphones |
| Interfaces | Type-C, Compliant with USB 2.0, (For data transfer; support OTG) 0.13 in (3.5 mm) headphone jack |
| Sensors | Acceleration sensors, ambient light sensor, Gyroscope, compass |

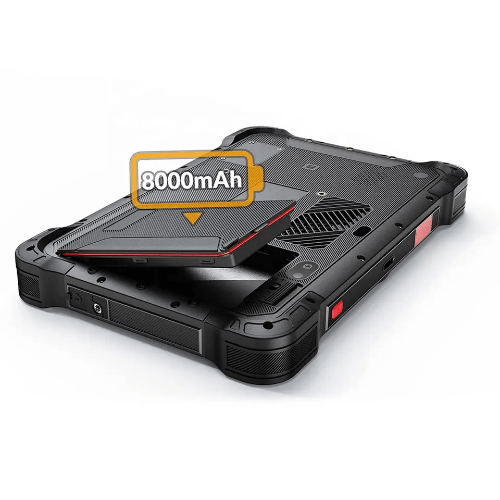

| Power | DC9-36V (ISO 7637-II compliant) Battery: 3.7 V,8000 mAh Li-ion (Replaceable) Battery operating time: about 4.5hrs (Typical) Battery charging time: about 4.5 hrs |
| Environment | Gravity drop resistance test: 3.93 ft (1.20 m) Vibration test: MIL-STD-810G Dust resistance test: IP 6x Water resistance test: IP x7 Operating temperature: 14 °F to 149 °F (-10 °C to 65 °C ) Charging temperature: 32 °F to 131 °F (0 °C to 55 °C) Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C) |
| Physical Dimensions (WxDxH) | 10.90 in x 7.28 in x 1.24 in (277 mm × 185 mm × 31.6 mm) |
| Weight | 2.99 lb (1.35 kg) |
