Overview

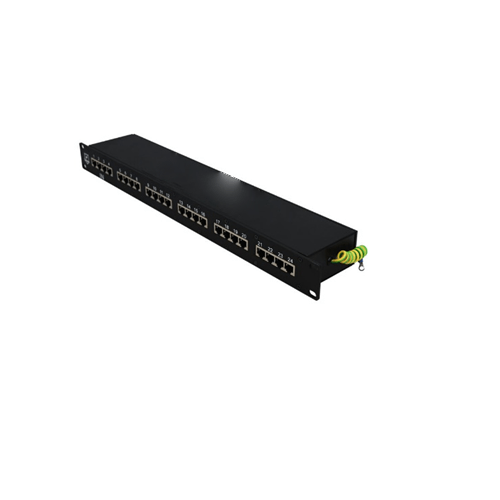

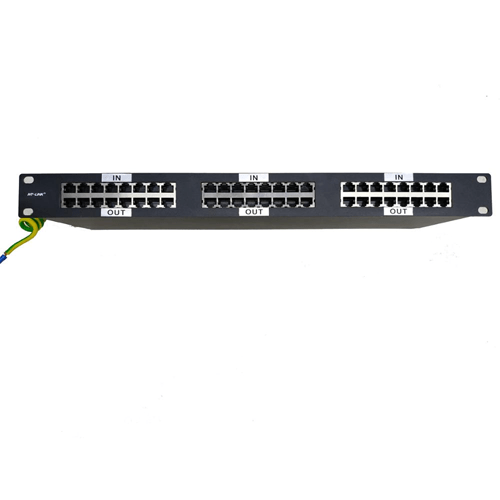

Specimen Track’s surge protection switch is a crucial device designed to safeguard electronic equipment from voltage surges or transients. These surges, often caused by lightning or power fluctuations, can damage sensitive electronics. this Surge Protection Switch works by diverting excess voltage away from connected devices, preventing potential damage. These devices are commonly used in industrial, commercial, and residential settings to protect valuable equipment like computers, televisions, and appliances. By effectively managing power surges, the Surge Protection Switch ensures the longevity and reliability of electronic devices, offering peace of mind to users.
Features
- Multi Protection circuits, Gas-Tube+ TVS technology
- Dual protection in Common mode and differential mode
- TVS array technology, low capacitance
- Multi-Strike Capability
- RJ45 connector
Technical Specifications
| Max. continuous operating voltage Uc | 5 V |
| Nominal discharge current（8/20 µs )In | 3 kA |
| Max. discharge current （8/20 µs）Imax | 5 kA |
| Limiting voltage (10/700 µs) Up Line-line | 20 V |
| Adapt transmission rate | 100 Mbps |
| Insertion loss | ≤0.5 dB |
| Response time tA | 1 ns |
| Interface form | Compression plug |
| Protection way | 1/2, 3/6 |
| Protection port | 24 |
| IP Code | IP 20 |
| Working conditions | Temperature: -40 °F to +176 °F (-40 ℃ to 80 ℃)Relative humidity: ≤95％ |
| Standards compliance | IEC 61643-1, RoHS |
| Dimension | 8.9 in × 3.38 in × 1.73 in (482 mm × 86 mm × 44 mm) |
| Weight per unit | 4.62 lb (210 g) |
