Overview

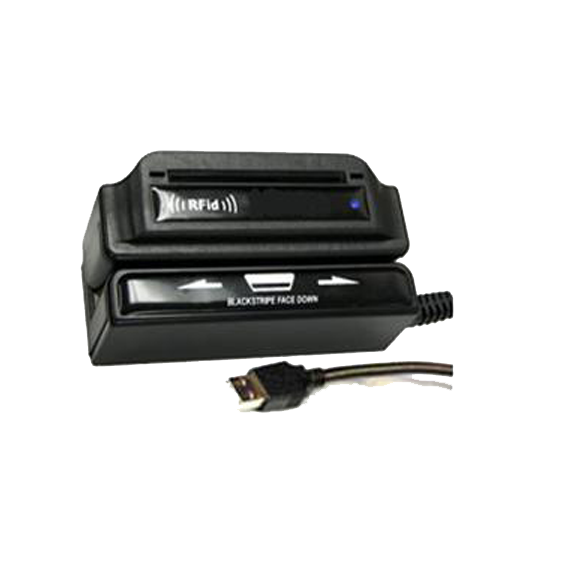

This plug and play 32 bit ARM7 Flash programmable reader features both Magnetic and RFID reader functions. It features selectable magnetic triple-track reading and bi-directional swiping and can be easily upgraded to support RFID or IC Chip Smart cards. This reader is compliant with ABA, ANSI, ISO, AAMVA and CADMV standards and is compatible with EM, TK, AT, Mifare and ICode cards. In addition, with its built in Flash upgrade option, the reader’s hardware will always be updated.
Key Features – Magnetic Stripe Card and 13.56 MHz RFID Reader Combo
- Features both Magnetic and RFID reader functions
- Compatible with EM, TK, AT, Mifare and ICode cards
- High speed 32 bit processor
- Specifically Designed to Meet PCI DSS Requirement
- Compliant with ABA, ANSI, ISO, AAMVA and CADMV standards
- Bi-directional swiping
- Programmable sound indicator
- Multitude of flash upgradable firmware includes USB-KB, USB-RS (serial) USB-HID, and USB-Custom
- Auto caps lock detection, selectable upper or lower case option
- Built-in boot load function and built-in data encryption option
- System development kits is available with DLL and sample source code
Applications – Magnetic Stripe Card and 13.56 MHz RFID Reader Combo
- E-Passport, E-Ticket, E-identification
- Credit card, loyalty program, store value
- Online shopping, banking, gaming
- Network, physical access control
Technical Specifications
| Model | 223022 |
| Frequency | 13.56 MHz |
| Built-in Magnetic Card Decoder | Yes |
| Supported Card types (Module Specific) | EM, TI, AT |
| Communications | USB port |
| Power | Via USB port |
| Current | 45 mA to 65 mA |
| Connectors | USB Type A |
| Cable Length | 6 ft. (180 cm) (Default) also available 2 ft. (60 cm) and 15 ft. (460 cm) |
| Dimensions | 100 mm x 32 mm x 32 mm 100 mm x 48 mm x 35 mm (contain RFID reader) |
| Total Weight | 125 g, 145 g (contain RFID reader) |
| Operating Temperature | – 20 °C to 55 °C |
| Humidity | 10% to 90% relative |
| On-Screen Set-up Menu | Yes |
| Factory Default Card | Yes (One step setup card) Customizable |
| Flash Memory Upgrade | Yes |
| Selectable Tracks | Yes (Separate track selection for both ISO and AAMVA) |
| Selectable Available Tracks | 1, 2, 3 |
| Track Swipe Rates | 2: 125 ips at 75 bpi 1, 3: 60 ips at 210 bpi |
| Head Life | Over 1,000,000 passes |
| Programmable Sound On/Off | Yes |
| Programmable Carriage Return | Yes |
| Programmable Inter character Delay | Yes |
| Programmable SS/ES Selectable Character | Yes |
| Parity and LRC Data Checking | Built-in, audible and LED good read and error indicator |
| Standards | ABA, ANSI, ISO, AAMVA, CADMV |
| Certifications | CE, FCC, UL, RoHS |
| Operating Systems | Windows 7, Win 2008, Vista, Win 2003, Win 2000, Windows XP, Win CE, Unix |
