Overview

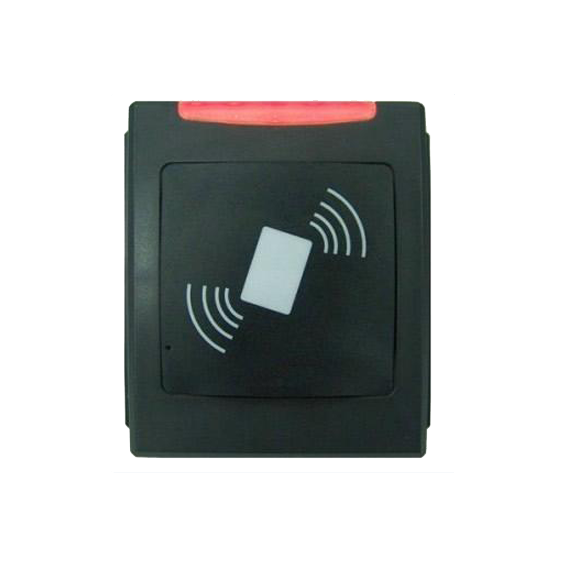

The Mifare Ethernet RFID reader can be configured to read either the UID section of MIFARE® cards or the user-defined sector data or MAD in a user defined closed system. It is especially suitable for applications such as access control, time attendance, guest registration, authorization identification and identity authentication.
The Mifare Ethernet RFID reader provides a read range of up to 7 cm. The RFID reader can also be designated with a reader ID number for multi-unit communication. Internal LED and buzzer are also configurable
Key Features – Mifare Ethernet RFID Reader
- PoE Ethernet interface
- Built-in relay control
- Reads MIFARE® cards
- Weather resistant indoor/outdoor design
- Reader ID for multi-unit communication
- Configurable LED and buzzer
- Compact size
Application – Mifare Ethernet RFID Reader
- Access control system
- Time attendance
- Guest registration system
- Authorization identification
- Identity authentication
Technical Specifications
| Model | 223026 | |
| Interface | Ethernet (POE) | |
| Applications | Mifare UID only | |
| Power Requirements | DC 7.5 V to 24 V | |
| Card Type | MIFARE® Classic | |
| Maximum Reading Distance | Up to 7 cm | |
| Frequency | 13.56 MHz standard | |
| Audio / Visual Indication | Internal LED and buzzer | |
| Relay | Built-in relay | |
| Dimensions | 112.3 mm × 96 mm × 22 mm | |
| Housing Material | ABS housing | |
| Environment | Operating Temperature | 0 °C to 60 °C |
| Operating Relative Humidity | 10% to 90% | |
| Certification | R&TTE / FCC | |
