Features
- High gain and low power consumption
- Wide Application
- Easily Install
- Small size and light weight
Technical Specifications
| Parameter | Description |
| Type | GPS or GNSS Antenna |
| Frequency | GPS, BDS, GALILEO |
| Gain at Zenith (90°) | 4.5 dBi (maximum) |
| Polarization | RHCP (Right-Hand Circular Polarization) |
| LNA Gain | 28 dB (typical) |
| Noise Figure | ≤2.0dB |
| Output VSWR | ≤2.0 |
| Operating Current | 12 mA (maximum) |
| Nominal Impedance | 50 Ω |
| Axial Ratio | ≤ 3 dB |

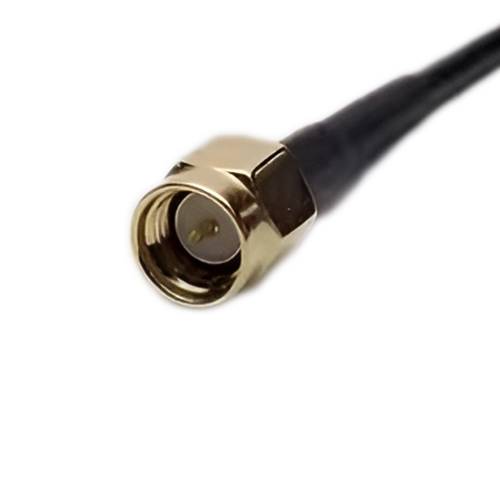

| Connector | SMA Male |
| Water and Dust Resistance | IPX6 |
| Mounting Type | Magnetic and Adhesive Mounting |
| Humidity | 95 % non-condensing |
| Temperature | – 40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 1.91 in x 1.54 in x 0.60 in (4.86 cm x 3.92 cm x 1.52 cm) |
| Weight | 1.31 oz (37.2 g) |
